mainline insulating joints pn40 100

Insulating joints
PN40-100 bar Ansi 600

For mainline sectioning

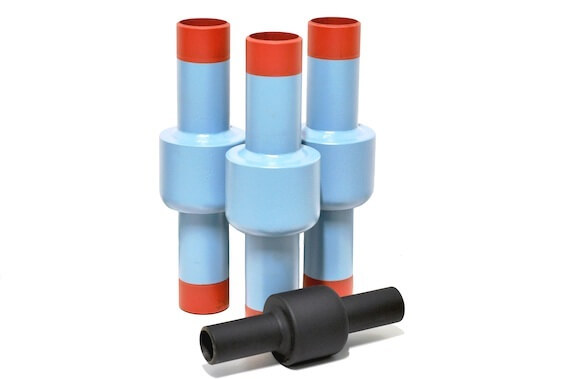

Usually ready in stock from DN 3/4“ to DN 12", the PROCHIND® insulating joints for mainline Pn 40-10 are normally produced in diameters from 3/4“ to 56" with bevelled ends and/or flanged.

On request FAP is able to produce PROCHIND® insulating joints up to 82“ diameter, operating pressure up to 250 bar / 25 Mpa, operating temperature up to 200°C / 392°F.

SUITABLE FOR:

WATER

GAS

HYDROCARBONS

Technical specifications

  • Manufatured and tested: UNI-CIG 10285

  • Max operating pressure: 100 bar / 10 Mpa

  • Test pressure: 150 bar / 15 Mpa

  • Max operating temperature: 70°C / 158°F

  • Electrical resistance in air t 1000V d.c.: > 5Mohm

  • Dielectric test: 3000 V

Materials

  • Pipe pups: steel UNI 7088/API 5L/ASTM/UNI

  • Main body: forged A105/equivalent/ASTM/UNI

  • Insulatings rings: G10/G11

  • Gaskets: NBR/VITON

  • Ends: bevelled API 5L and/or flanged

  • Coatings: epoxy resins certificated for drinkable water according to DM 174

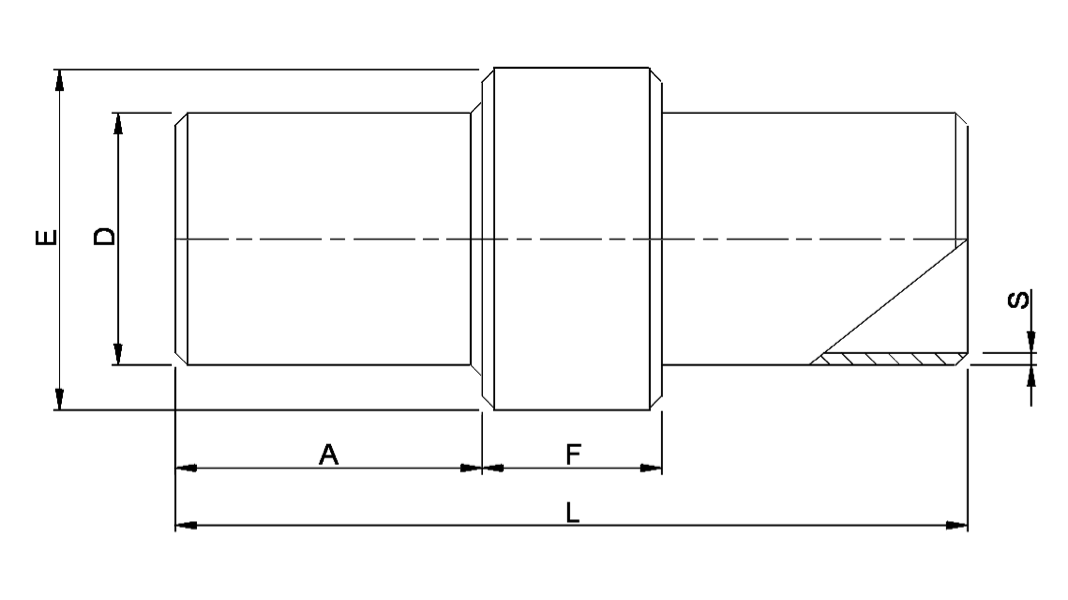

indulating joint drawing

* Dimensions in mm are for information only and may change.

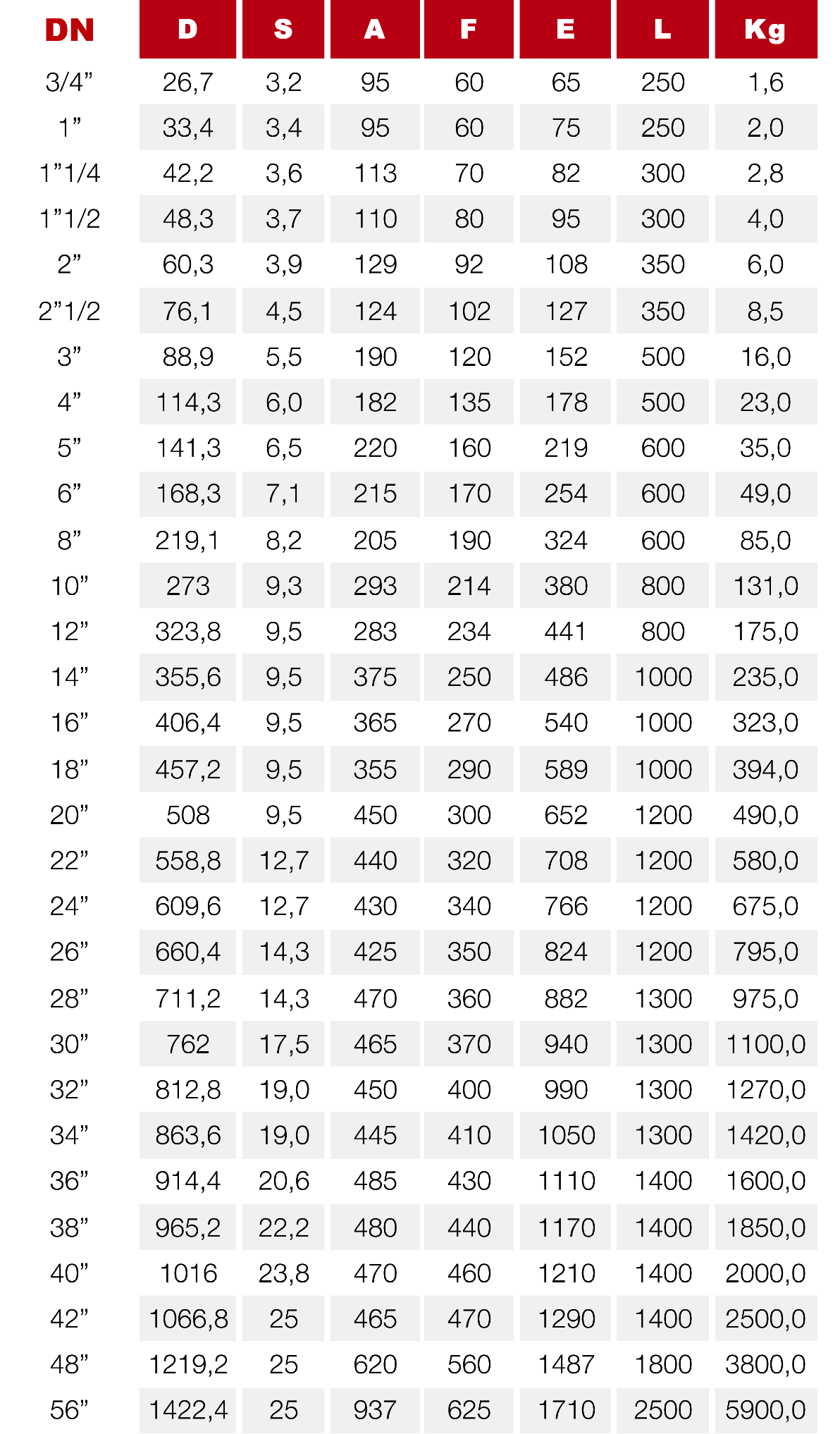

Download data sheet PN40 100
prochind monolithic insulating joints
prochind high pressure insulating joints
insulating joint for water welding
insulating joint dieletric hydraulic test
